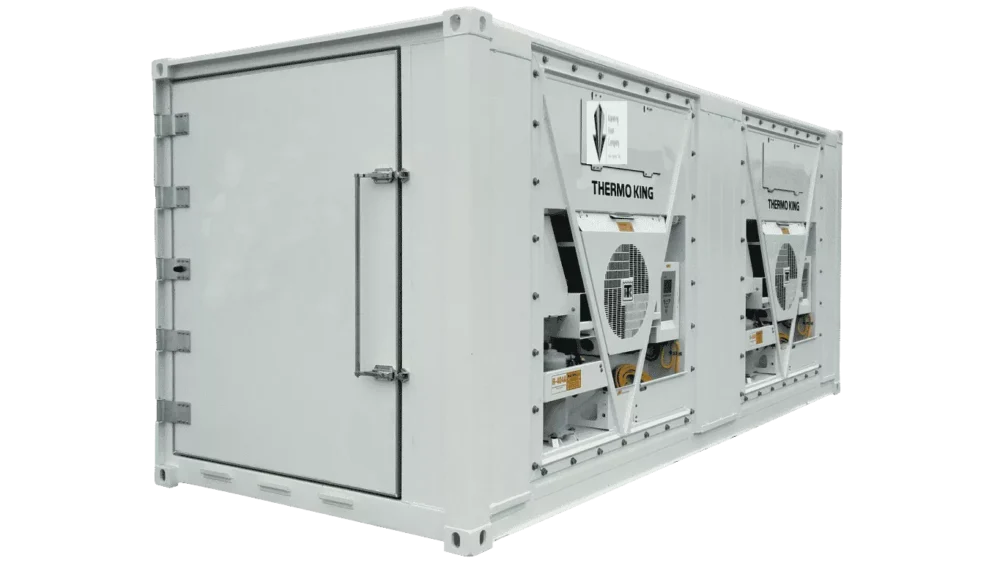

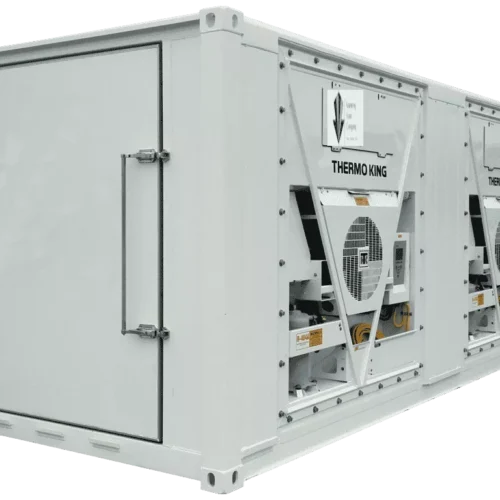

20FT Blast Freezer Container-40°F TO 70°F (460V/230V 3P)
Original price was: £6,500.00.£5,750.00Current price is: £5,750.00.
- Cold storage blast freezer

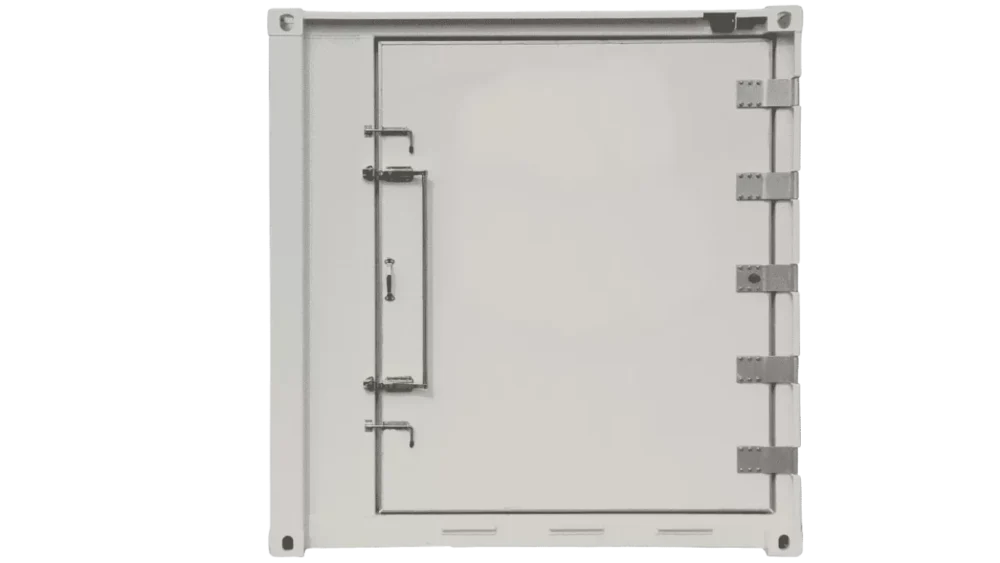

- Easy open butcher door
- Walk in curtains
- Temperature range -40°F to 70°F
- Flat floor
- LED Interior lights
- Requires two power supplies 460V 3 phase or 230V 3 phase with optional transformer
- Calculated on average values 22,000lbs of fish will be cooled to 0°F (-18°C) core temperature from 41°F (5°C) in approx. 44 hours.
- Total capacity of 12,600Kcal/hr(49,600Btu/hr) at ambient 100°F (37.8°C) and evaporator return air temperature 0°F (-18C)
Delivery Information
This 20ft blast freezer container can be delivered using one of these options:
20ft Blast Freezers For Sale Online -40°F to 70°F (460V/230V 3P)
Specifications
These 20ft blast freezers containers for sale have the following specifications;
Internal capacity
23.8m3 (841 Cu.ft)
Door opening dimensions
Width 1,737 0/-5mm (5’-8 25/64” 0/-3/16”)
Height 2,232 0/-5mm (7’-3 7/8” 0/-3/16”)
Cargo access height 2,232 0/-5mm (7’-3 7/8” 0/-3/16”)
Ratings
Max. Gross Weight 24,000KG (52,910LB)
Tare Weight 2710KG (5980LB)
Tare Weight (incl. Unit 740 kg) 3450KG (7600LB)
Max. Payload 20550KG (45310LB)
Insulation
Item Thickness Density
Roof 90mm 40kg/cu.m
Side walls 65mm 45-50kg/cu.m
Door panels 81mm 45-50kg/cu.m
Floor 101/51mm 45-50kg/cu.m
Heat leakage value
Umax = 30 kcal/deg.c.hr. at the mean wall temperature 293K (20 °C)
Max. air leakage value
Qmax = 14 m3/hr. (incl. reefer unit max. 0.5m3/h) measured at 250+-10Pa.
